Our Custom Line of Premium Ratchet Wrenches are Built at Our In-House Machine Shop in SE Michigan

With a focus on durable materials, comfortable design, and dependable operation, our wrenches are the smart choice for tightening in tight spots.

Our wrenches come in a variety of models for running hard-to-reach fasteners in practically any application. These accurate and reliable ratchet wrenches feature sturdy, well-designed and constructed ratchet heads powered by long-lasting, high-torque Ingersoll-Rand air motor power units.

Choose from a wide range of ratchet wrench models:

Standard
Right Hand
Left Hand
Extended
20-Degree Angled
40-Degree
Thin
And More

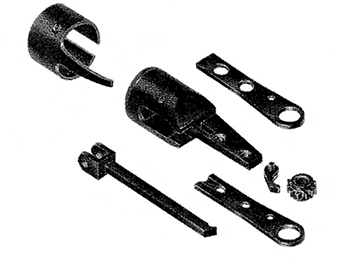

Our Custom Ratchet Wrenches Can Be Customized to Your Unique Specifications

Each part can be selected from a range of options to create your perfect tool. Below are instructions on how to choose your parts:

1. Select the correct power unit based on the required torque, speed and hex size - which depends on the size of the fastener to be driven. Make sure the hex size of your fastener does not exceed the maximum hex size of the power unit selected.

See Power Unit Diagrams

2. Determine the correct ratchet head for your application. Make sure the hex size of your fastener does not exceed the maximum hex size of the ratchet head selected.

See Ratchet Head Diagrams

3. Using the ratchet head table, determine the side plate width (A width) of the required ratchet head.

See Ratchet Head Table

4. Use the socket tables to select the correct socket part number in the column for the corresponding side plate width.

See Socket Tables

To obtain the proper complete tool model number, combine the power unit model number with the ratchet head code number (do not use ratchet head part number), and then the last two digits of the socket part number. It is not necessary to specify the adapter number; the correct one will be supplied.

Example Order:

Power Unit: Series 7 Lever Operated Power Unit and "L" Ratio Gearing (7LLU1)

Adapter: No. K1718

Ratchet Head: 3/4" wide, standard length, straight (007)

Socket: 7/16" single hex, standard thickness (121614)

Complete Tool Model Number: 7LLU1-007-14

If you have any questions on how to determine the ratchet wrench or replacement parts for your needs, or would like to place an order, contact us today. We’re always happy to discuss your needs!
